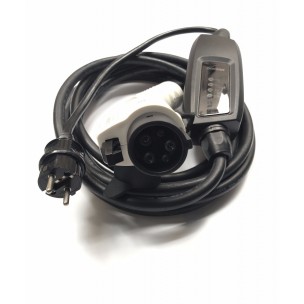

Duosida Mobiele Lader Type 1 naar Schuko 5m

Duosida Mobiele Lader Type 1 naar Schuko 5m

Artikelnummer: 99051000891
Een mobiele thuislader voor in een gewoon (Schuko) stopcontact.
Voor auto's met een Type 1 aansluiting.
Laadstroom 10A (2,3kW).
Lengte 5 meter.
2 jaar garantie.
Waterdicht IP55 Lees verder

Wees de eerste om dit product te beoordelen

We hebben 23 stuks op voorraad
€ 250,00 € 206,61 excl. btw

X
naar boven

Duosida Mobiele Lader Type 1 naar Schuko 5m

Eenvoudig uw elektrische of hybride auto laden via een standaard stopcontact met deze budget mobiele thuislader.

Deze mobiele thuislader is geschikt voor alle voertuigen welke een Type 1 aansluiting aan de autozijde hebben waaronder: Nissan Leaf t/m 2017, Mitsubishi Outlander, etc.

Lengte: 5 meter
Laadstekker: Schuko
Auto stekker: Type 1 Female (J1772)
Max. voeding: 10A/230V
Artikelnr.: 3030-PSE-16-XC-AS
CE-certificering volgens 2014/30/EU (Electromagnetic Compatability) en 2014/35/EU (Low Voltage)

Features
1.Charging plug meet SAE J1772 2010 standard
2.Power plug meet DIN VDE 0620-1 standard
3.Control box meet SAE J1772 2010 control principle
4.Excellent protection performance, protection grade IP55(in working condition)

Environmental performance
1.Operating temperature:-30℃~+50℃

Mechanical properties
1.Mechanical life:no-load plug in/pull out>10000 times
2.Impact of external force:can afford 1m drop and 2t vehicle run over pressure

Electrical Performance
1.Rated current and voltage: 220V AC 10A
2.Insulation resistance: >1000MΩ(DC500V)
3.Terminal temperature rise: <50K
4.Withstand voltage: 2000V

Applied Materials
1.Case Material:Thermoplastic,flame retardant grade UL94 V-0
2.Pin:Copper alloy,silver+thermoplastic on the top

Control Box Function
1.Leakage protection(restart recover)
2.Overload voltage under-voltage protection(self-checking recover)
3.Overload protection(self-checking recover)
4.Lightning protection



naar boven Productattributen
General
Auto model Ford C-MAX Plug-In Hybride, Mitsubishi Outlander, Nissan Leaf (-2017 3kW), Nissan Leaf (-2017 6kW), Opel Ampera (2011-2015), Toyota Prius Plug-in Hybrid 2012-2016
Maximale Stroomsterkte 10A
Fasen 1 fase
Kabel Lengte 5 meter
Kabel Kleur Zwart
Plug Laadpuntzijde Randaarde (F/Schuko)
Plug Voertuigzijde Type 1 (Yazaki) Female
Plug Kleur Wit
Fabrikant Duosida (CN)
Garantie 2 jaar
Gewicht (kg) 2.5
