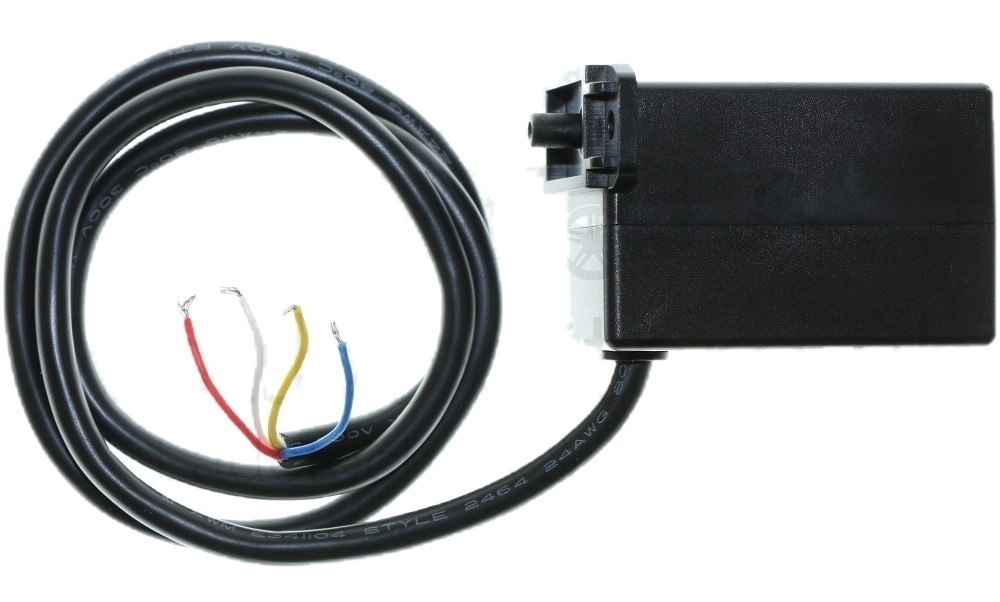

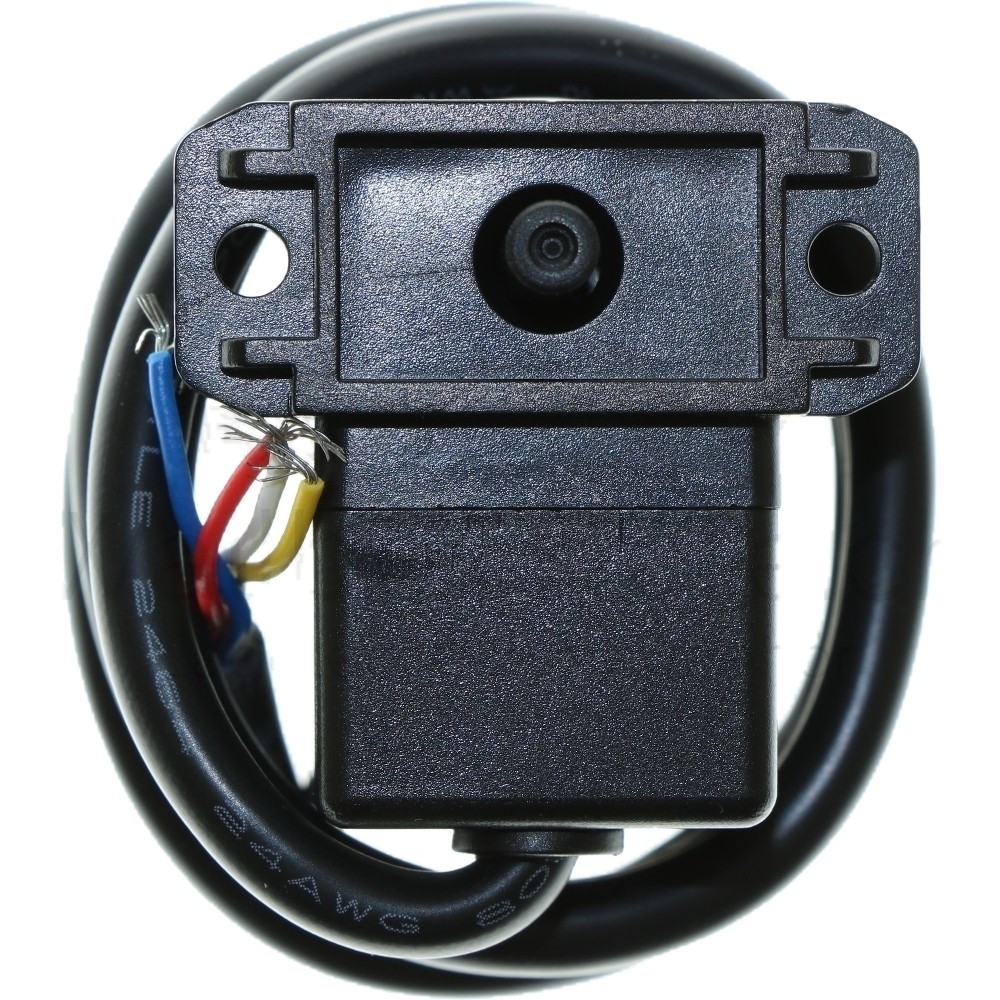

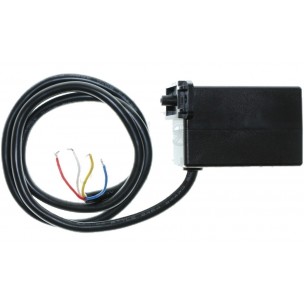

Electromagnetic lock
Model: DSIEC-ELC
Prevent charging plug release accidentally
Features:
- Low power long power supply mode, low heating temperature
- Small size, suitable for small space installation
- Power blackout unlocked automatically
- Non-detachable shell protection, protection grade IP55
Electrical Performance:
- Current: 0.2A
- Voltage: 2V DC
- Power: 2.4W
- Operating voltage range: 12V DC
- Withstand voltage: 500V
- Working cycle: ON : 1Sec OFF : 10Sec
- Insulation class: B ( CLASS B )
Environmental performance:
- Operating termperature: -30 °C ~ +50 °C
Applied Materials:
- Housing material: thermoplastic, flammability class UL94 HB
Mechanical properties:
- Mechanical life: operating cycle > 20000 times

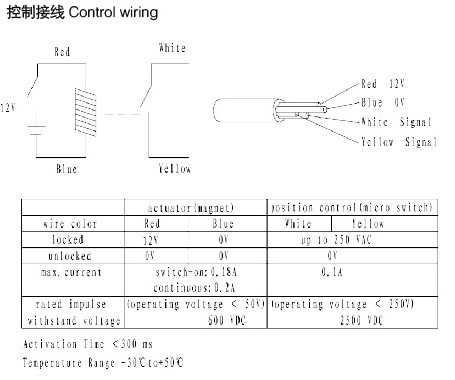

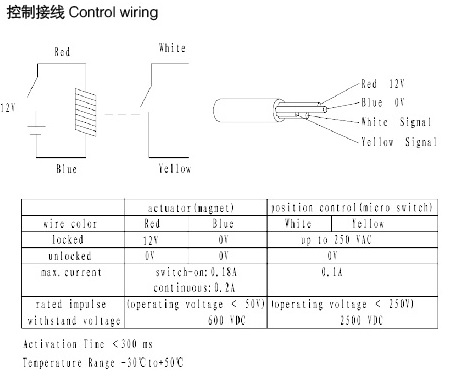

Cable specification:
- 4 x 0.25mm2
General
|
|
Fabrikant | Duosida (CN) |
---|---|
Gewicht (kg) | 0.25 |
